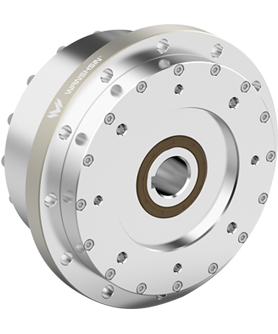

WCF Series

The WCF series features a compact design, high structural rigidity, excellent positioning and rotational accuracy, and direct input configuration.

Product Features

Compact structure

Optimizes space utilization without compromising efficiency
High rigidity design

Maintains stability and accuracy even under heavy loads
Smooth operation with direct input type

Reduces noise and vibration for a quieter working environment.
Excellent positioning and rotational accuracy

Ensures precise movement for complex and demanding processes.

Performance Parameter

Modol	Ratio	Rated load N.m	Rated speed r/min	Backlash arcmin	Positioning Accuracy arcmin	Lifespan hour	Product rigidity Nm/arcmin	Instantaneous max speed r/min	Acceleration/Braking torque N.m	Max. overturning moment N.m	Instantaneous max torque N.m	Maximum axil force N


07	31	6	1750	P0-P2	1.5	8000	/	3000	12	/	27	/
	51
	81
17	31	30	1750	P0-P2	1.5	8000	/	3000	60	/	135	/
	51
	81
25	31	80	1750	P0-P2	1.5	8000	/	3000	160	/	360	/
	51
	81
	101
	121
32	31	170	1750	P0-P2	1.5	8000	/	3000	340	/	765	/
	51
	81
	101
	121
	161
40	31	300	1750	P0-P2	1.5	8000	/	3000	600	/	1350	/
	51
	81
	101
	121
	161
*The backlash P0-P2 corresponds to P0≤0.8arcmin，P1≤1.5arcmin，P2≤2arcmin
