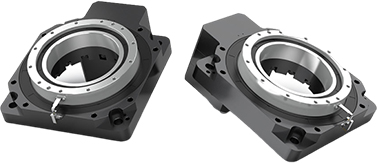

WTN

Overview
Technical Information
  • Cross Bearing Design:High load capacity with rotational precision - face runout batch-controlled within 0.015mm
  • Helical Gear Optimization:High-strength tooth profile ensures perfect meshing and low-noise operation
  • Precision Ground Gears:Adjustable backlash <0.5 arc-min | Minimal heat generation | Smooth running
  • Monolithic Input Shaft:Eliminates slippage and shaft breakage risks
Features
Parameters
Directory
Product Features
  • Cross Bearing Design
    High load capacity with precision rotation - batch-controlled face runout ≤0.015mm
  • Integrated Input Gear Design
    Eliminates slippage and shaft fracture
  • High-Tooth Helical Gear Design
    Ensures superior strength, optimal contact ratio and low-noise operation
  • Precision Gear Grinding Technology
    Adjustable backlash <0.5 arc-min | Reduced heat generation | Smooth operation
Performance Parameter

Specifications Unit WTN060 WTN085 WTN110 WTN130 WTN200 WTN280 WTN350 WTN450
Applicable motor models 42 stepper motor 57 stepper motor 57 stepper motor 57 stepper motor 86 stepper motor 110/130 stepper motor 130 stepper motor 130 stepper motor
Ratio 5,10,18 5,10 10 10, 18 10,18 10 10,18 10
Rated output torque N ·m 5.2 ,4.6 ,1.2 12,10 40 32,20 70,70 280 320,260 400
Noise dB 65 65 65 65 67 71 73 75
Weight Kg 0.6 1.2 2.2 2.8 9.6 18 25.5 49
